Wagner Tuning Competition Intercooler Kit EVOX incl. charge pipe Audi RS 3 8Y 2.5 TFSI

EVO X COMPETITION INTERCOOLER incl. charge and boost pipe for AUDI RS 3 8Y


Audi RS 3 8V Sportback/Sedan 294KW/400PS 07/2021+

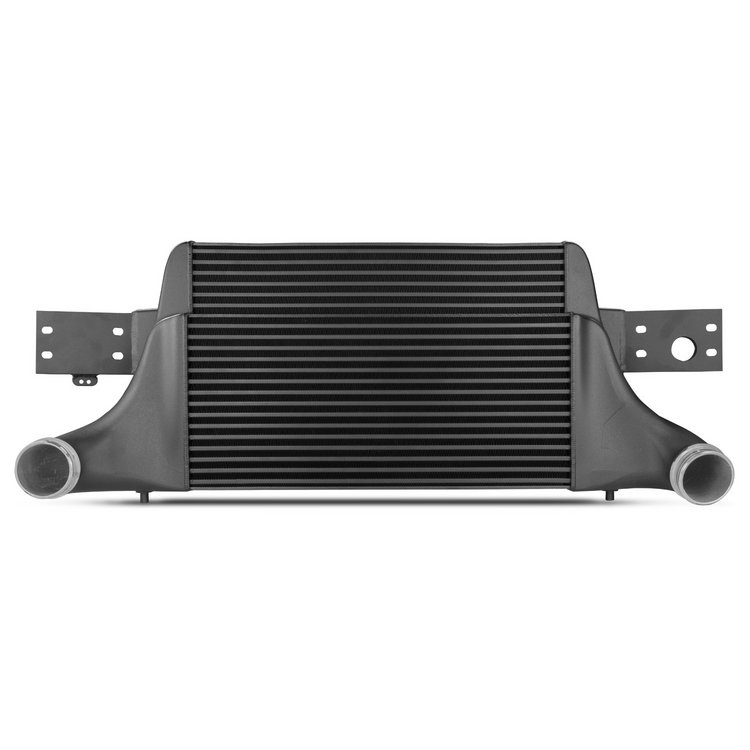

The high performance intercooler has the following core dimension (600mm x 395mm x 135mm = 28,9L) and this offers a 127% larger cooling surface and 250% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS 3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the crossmember form a stable unit and weighs only 18,0 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! Optimized for best possibel internal flow with ?82mm in- and outlets.

OEM intercooler:
cooling surface 1043cm?
charge-air-volume 8,3L

WT EVO X Competition:
cooling surface 2370cm?
charge-air-volume 28,9L

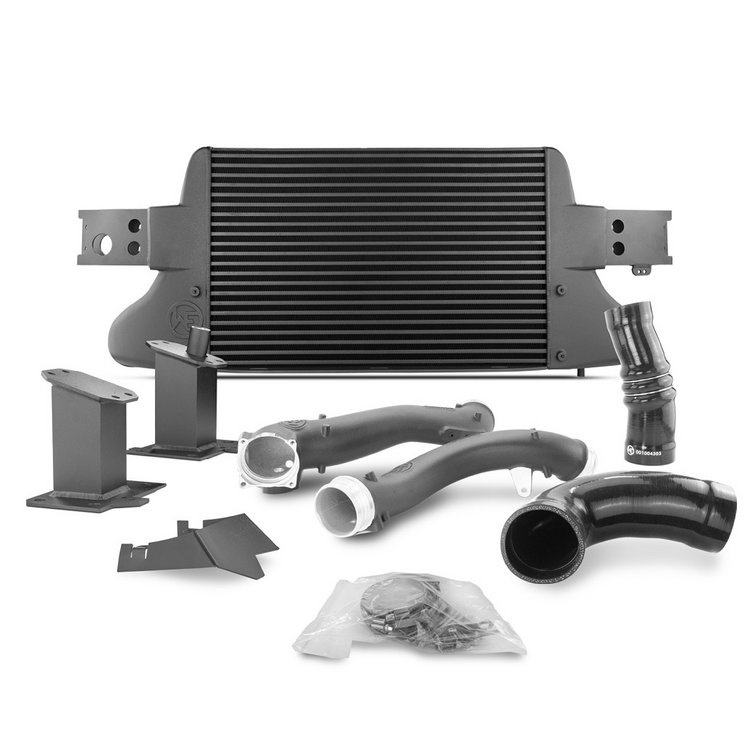

kit comes with:
1 intercooler including crossmember
1 aluminum air guide

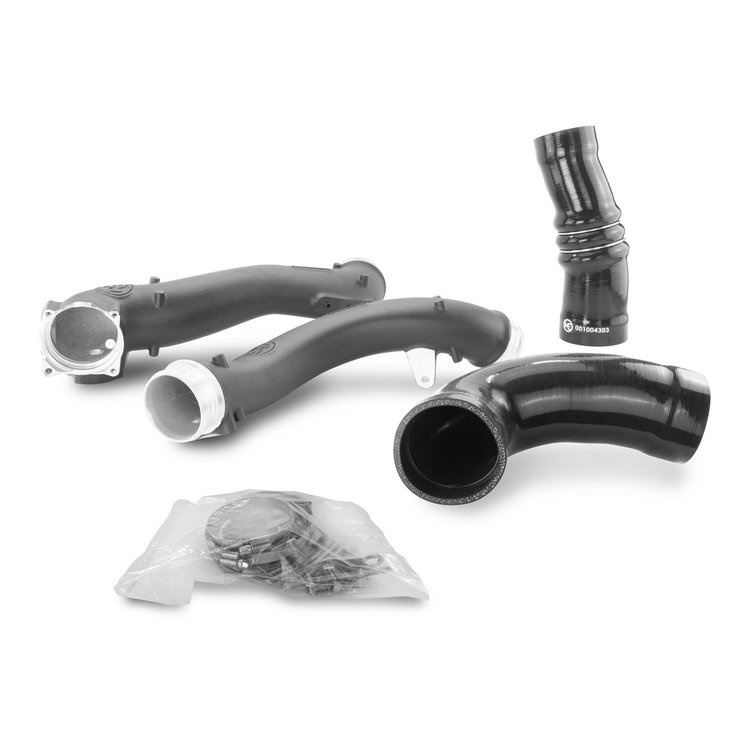

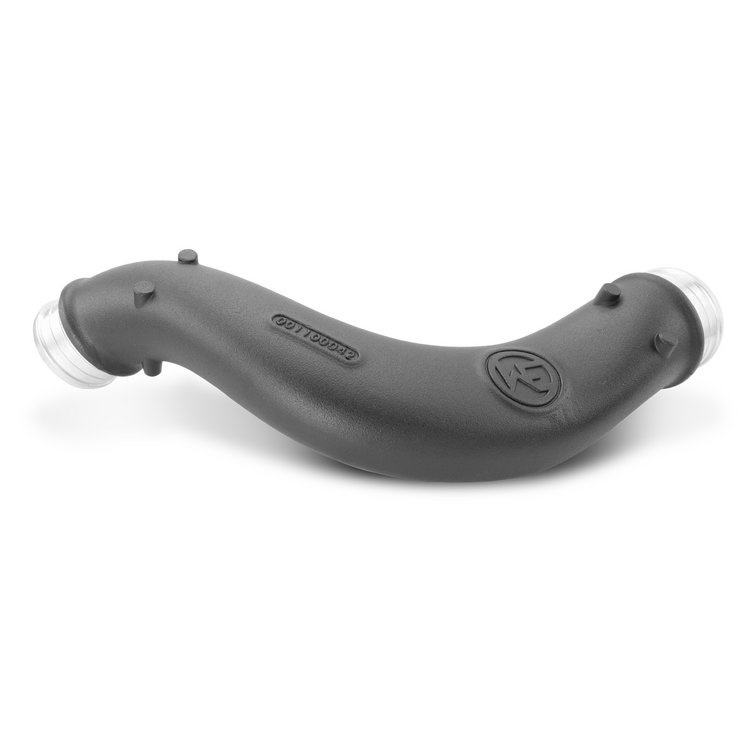

1 cast aluminum charge pipe
1 cast aluminum boost pipe

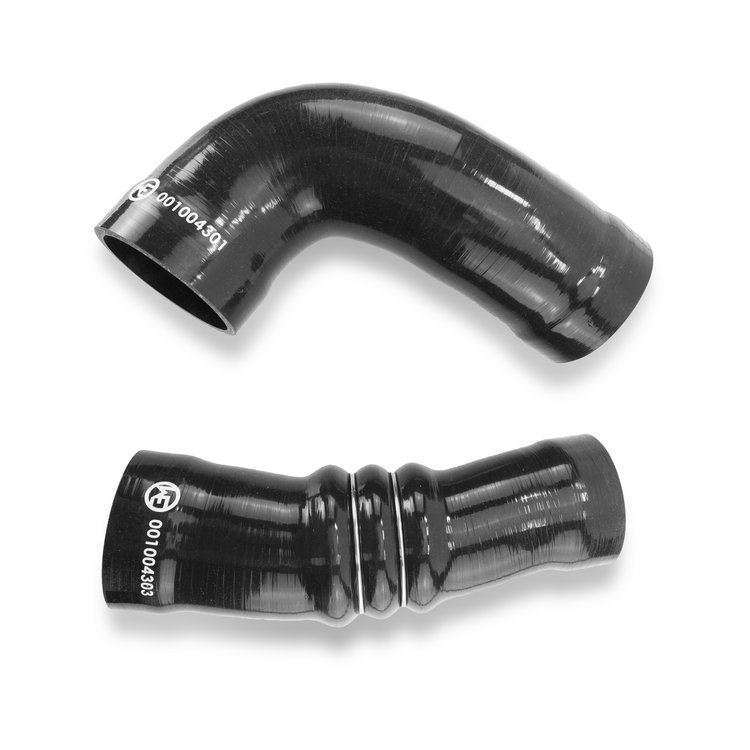

3 silicone hoses
1 mounting material
1 installation instruction
