Wagner Tuning Competition Intercooler Kit BMW 520d

Описание

Competition Intercooler Kit for BMW G30/31 528-540d G32 620-640d

BMW G30/G31 518d engine code: N47 110KW/150PS (2018-07/2020)*
BMW G30/G31 520d engine code: N47 140KW/190PS (2017-2020) *
BMW G30/G31 525d engine code: N47 170KW/231PS (2017-2019) *
BMW G30/G31 530d engine code: B57 195-210KW/265-286PS (2017-07/2020) *
BMW G30/G31 540d engine code: B57 235-250KW/320-340PS (2017-07/2020) *
BMW G32 620d engine code: B57 140KW/190PS (2018-2020) *
BMW G32 630d engine code: B57 195-210KW/265-286PS (2017-07/2020) *
BMW G32 640d engine code: B57 235-250KW/320-340PS (2017-07/2020) *
BMW G11/12 740d MKB: B57 235-250KW/320-340PS (2017-07/2020) *
BMW G14/15/16 840d MKB: B57 235-250KW/320-340PS (2017-07/2020) *


*not suitable for 520d 620d cars with XD5O-engine
*not suitable for Facelift from 07/2020

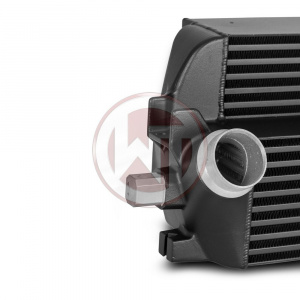

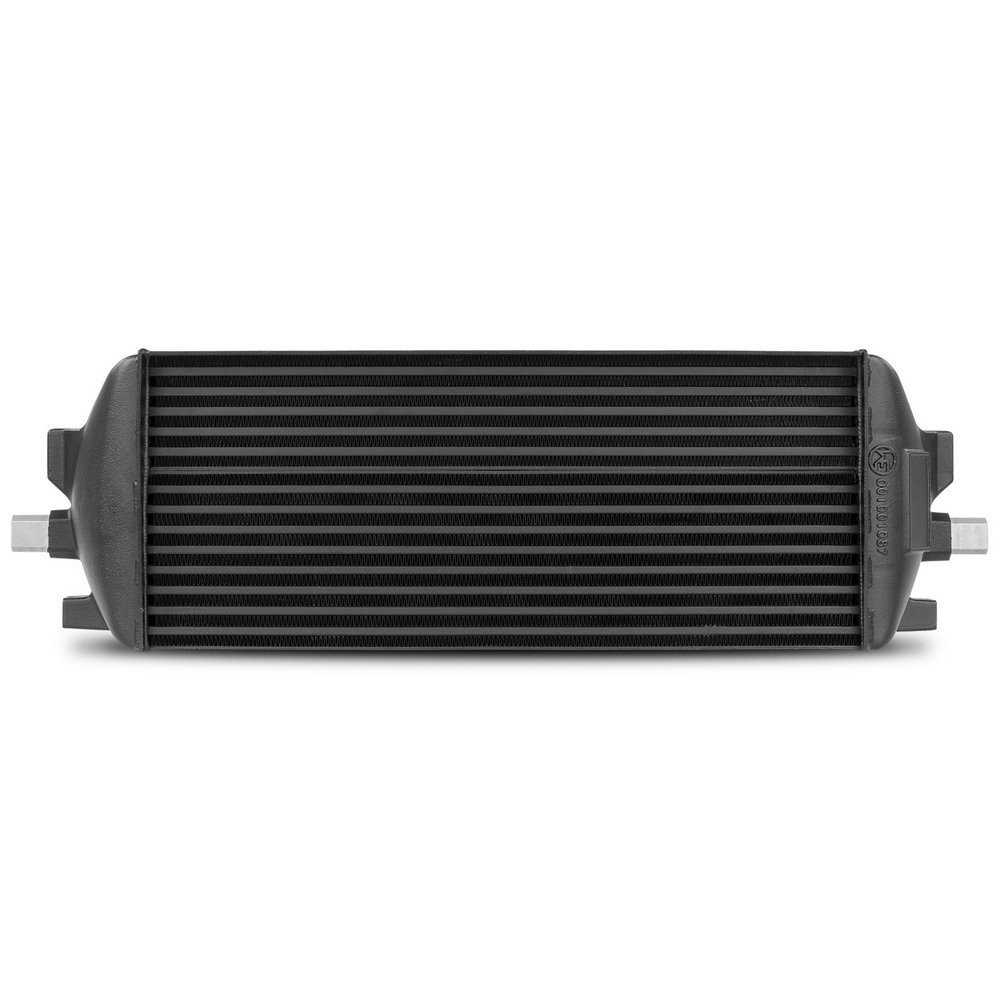

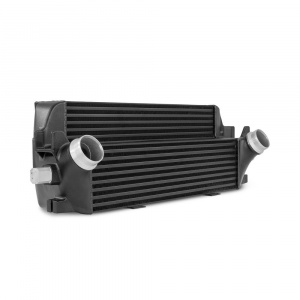

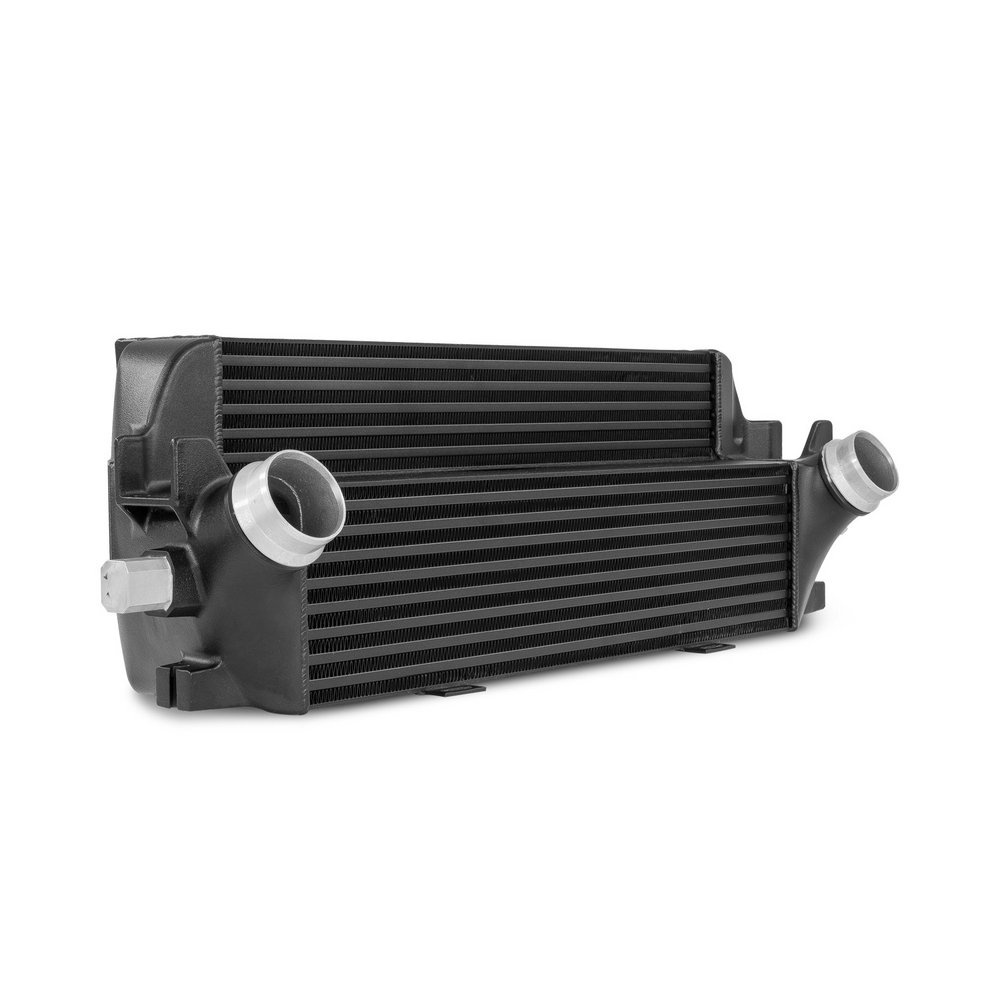

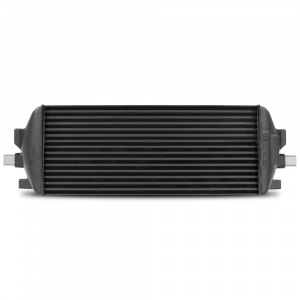

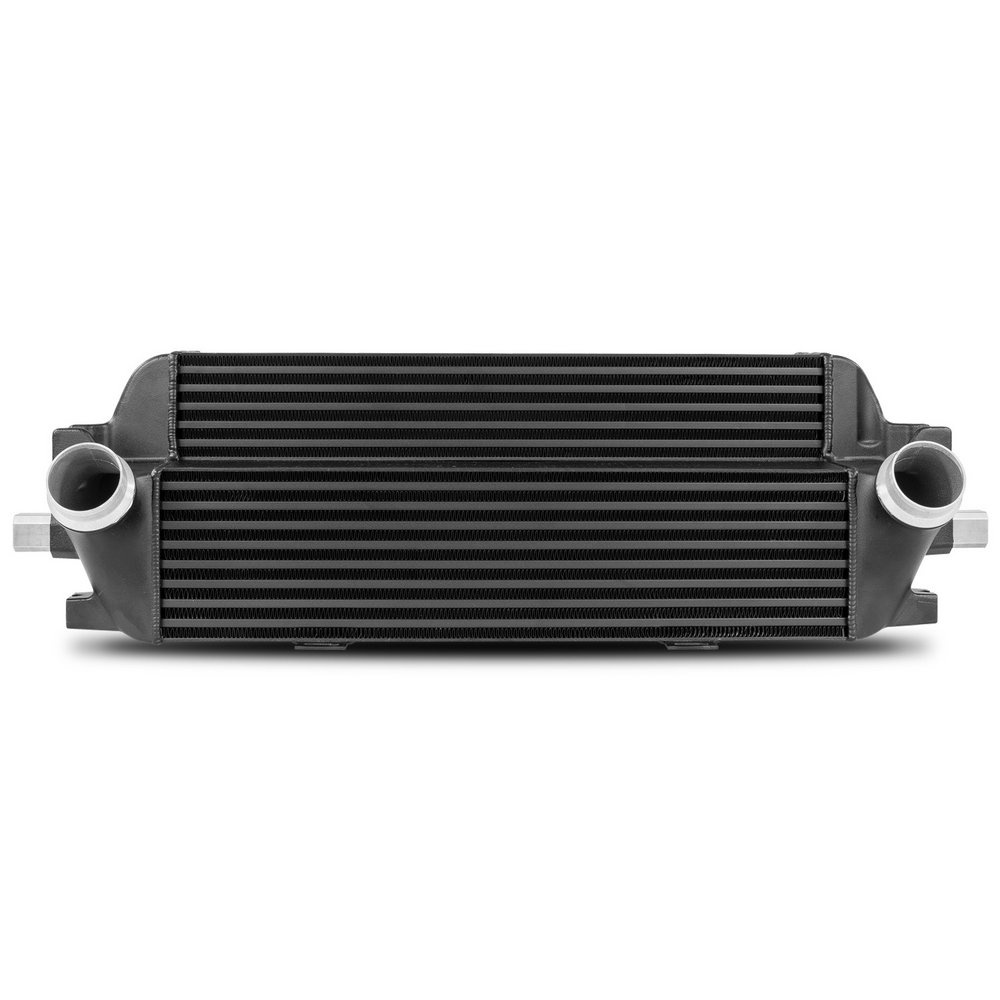

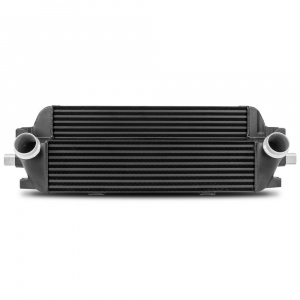

The competition intercooler has the following core dimension (570mm x 236mm x 150mm / stepped = 16.160cm?) and thus offers a 70% larger cooling surface and 112% more charge air volume compared to the stock mounted intercooler. The new developed competition intercooler core supports a very high ratio of airflow and is also very light. The weight of the complete intercooler is only 10,5kg. The endtanks are made ??of cast aluminum and have been optimized under flow analyzes in the CFD system. With the help of additional air guides, inside the inlet, an uniform filling of the intercooler is provided. The original charge air hoses can still be used. The results are excellent cooling properties with minimum pressure drop. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Ready for installation (plug & play), only replacing the stock intercooler. Optimum cooling of the charged air with a clear increase in performance!

Dimensions stock Intercooler:
545mm x 145mm x 96mm
V=7,6 Liter
A=790 cm?

Dimensions WAGNERTUNING intercooler:
570mm x 236mm x 150mm / gestuft
V=16,2 Liter
A=1345 cm?

packing list:
1 intercooler (coated black)
