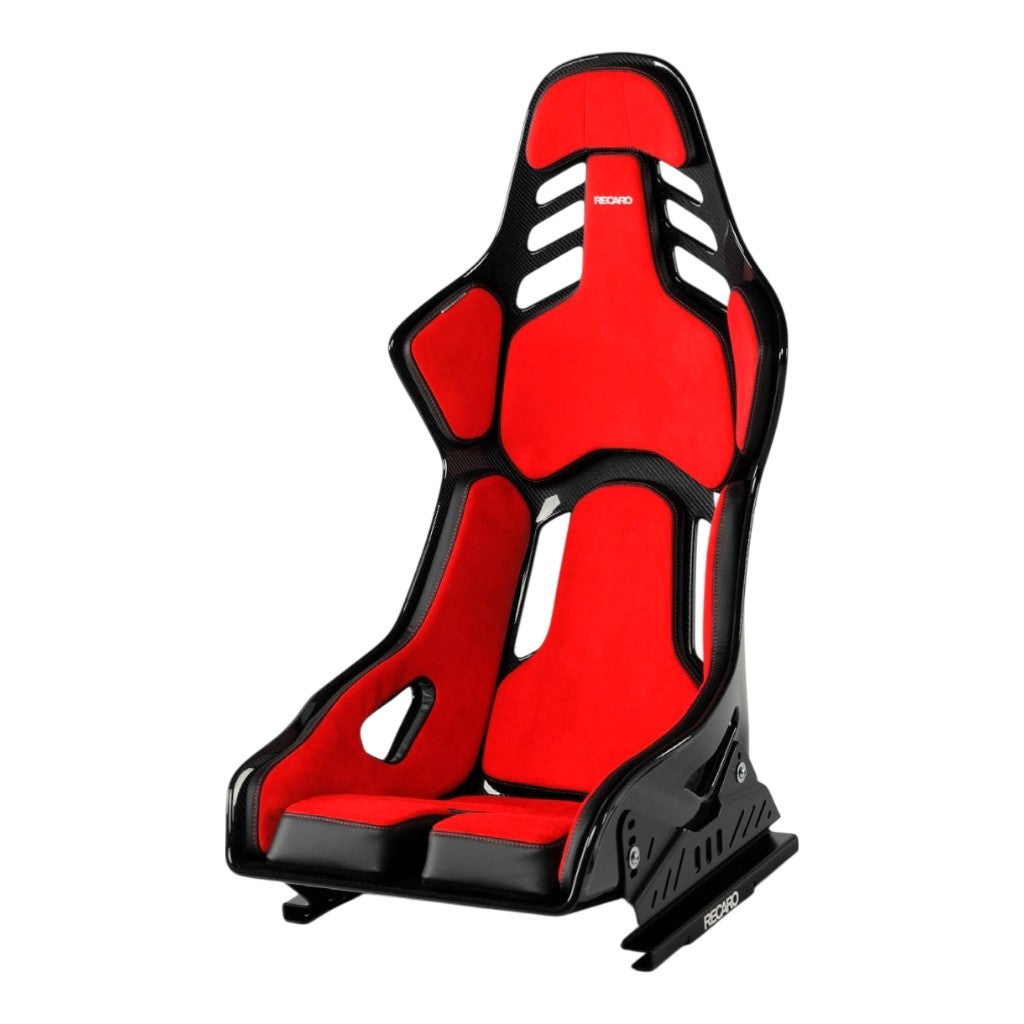

RECARO 078.31.2B23 Race Seat Podium CF Right Side (ABE / FIA 8855-1999) SAB, Red Alcantara / Black Leather, Size M

Description RECARO 078.31.2B23 Race Seat Podium CF Right Side (ABE / FIA 8855-1999) SAB, Red Alcantara / Black Leather, Size M

The RECARO Podium CF is a carbon fiber reinforced plastic (CFRP) shell seat developed for dual-purpose use on public roads and race tracks. Engineered to meet the contrasting requirements of daily driving and competitive motorsport, it combines lightweight construction, structural rigidity, and advanced ergonomic support. This right-side version in Size M is finished in Red Alcantara and Black Leather and features an integrated side airbag (SAB), making it the first retrofit shell seat equipped with an airbag.

Certified with ABE (German general type approval) and FIA 8855-1999 homologation, the Podium CF is approved for road and competition use when installed with the appropriate RECARO baseframe and sidemount. The visible CFRP shell integrates a headrest, specially formed shoulder support, and pronounced lateral bolsters in the backrest and seat cushion areas to ensure stability under high lateral loads. Replaceable Pad Kit M is designed for drivers of medium build, while the open-back shell construction supports passive ventilation for extended driving comfort.

• CFRP lightweight shell construction
• ABE approval and FIA 8855-1999 homologation
• Integrated side airbag (SAB)
• Integrated headrest and specially formed shoulder support
• Enhanced lateral support in backrest and seat cushion areas
• Developed for use with HANS and head and neck safety systems
• Suitable for 3- or 4-point belts (road use)
• Suitable for 4-, 5-, or 6-point harnesses (racing use)
• Replaceable Pad Kit M for medium build drivers
• Highly fire-resistant upholstery materials

Specifications:

• Homologation: FIA 8855-1999
• Approval: ABE (with RECARO baseframe and sidemount)
• Shell Material: Carbon fiber reinforced plastic (CFRP)
• Overall Height: 748 ±10 mm
• Overall Width: 877 ±10 mm
• Shell Width at Shoulders (Outer): 526 ±10 mm
• Shell Width at Seat Bottom (Outer): 495 ±10 mm
• Seat Width at Bottom (M): 358 ±10 mm
• Shoulder Support Height: 544 ±10 mm
• Seat Depth: 438 ±10 mm
• Belt Slot Height: 74 ±10 mm
• Center Belt Slot Height: 611 ±10 mm
• Mounting Bolt Width: 406 ±10 mm
• Weight (Podium CF M): approx. 7.4 kg
• Net Shell Weight (without mounted parts): approx. 4.9 kg
