EVENTURI Carbon Fiber Turbo Inlets (Gloss / Matte Finish) for BMW M5 (G90 / G99)

Part Number:

• EVE-G9X-CF-CHG : BMW G90, G99 M5 Carbon Turbo Inlets – Gloss Finish

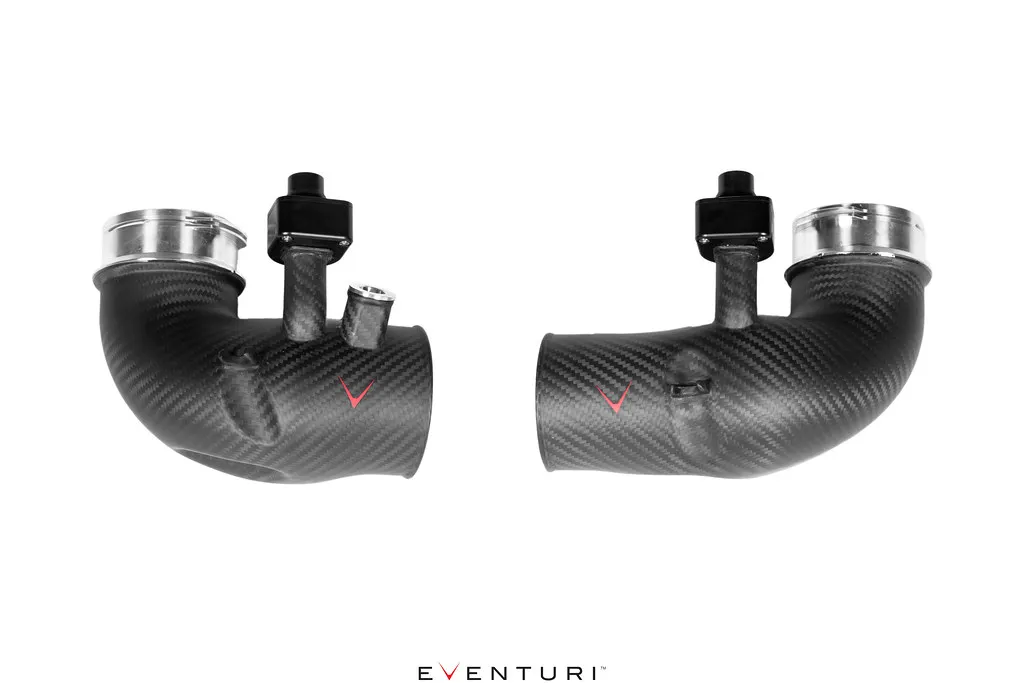

• EVE-G9X-CFM-CHG : BMW G90, G99 M5 Carbon Turbo Inlets – Matte Finish

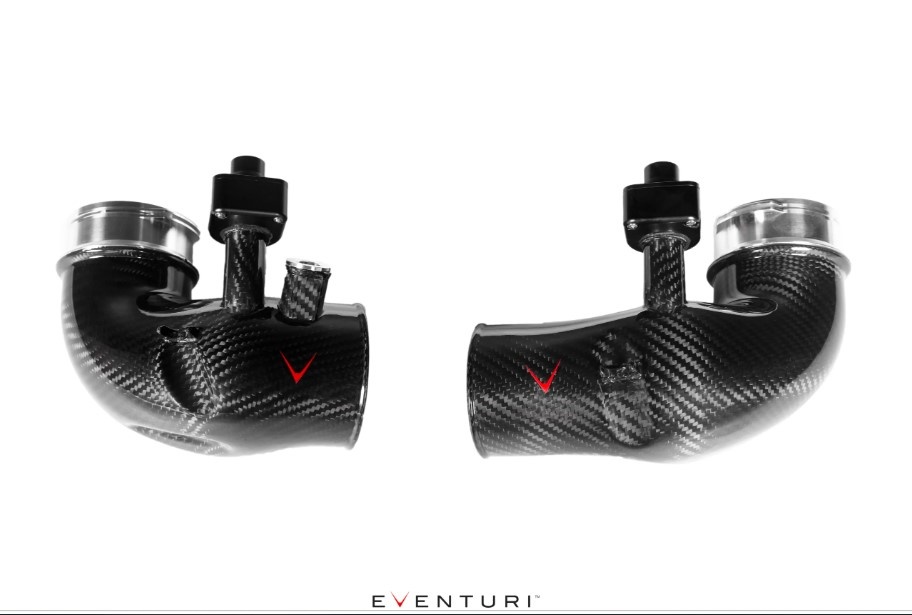

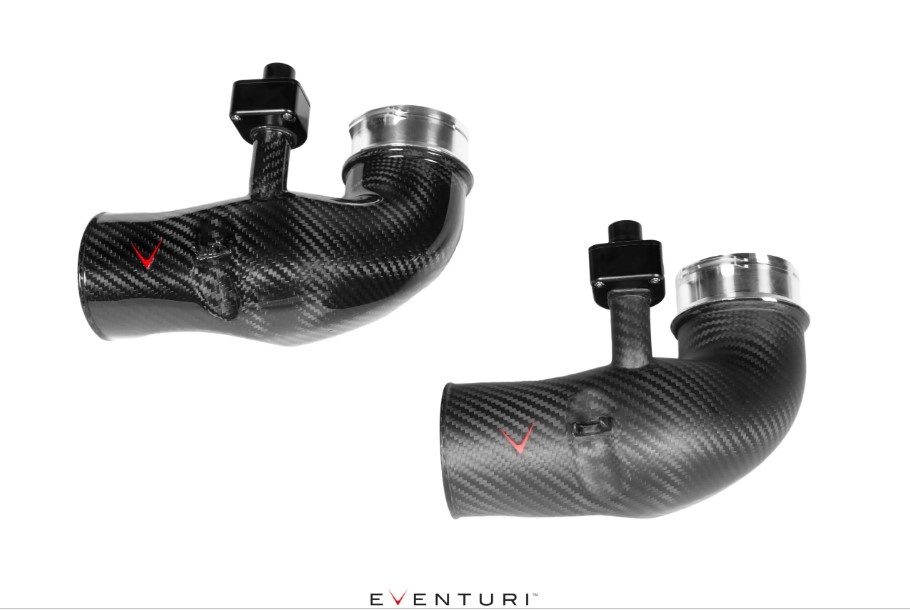

The Eventuri G9X inlets are manufactured from high temperature prepreg carbon fiber and come assembled with a number of other components engineered to perform a specific purpose and fabricated to the highest of standards.

Each inlet inlet set consists of:

• Prepreg Carbon Inlet Pair

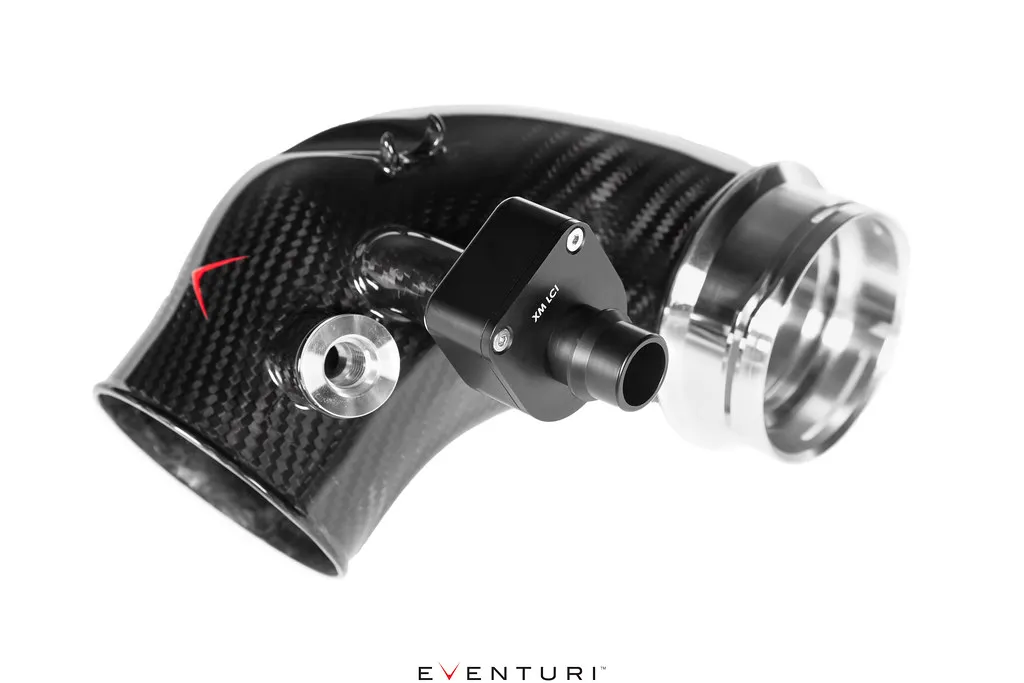

• CNC Machined Turbo Flanges
• CNC Machined Breather Valve Assembly

COMPARISONS

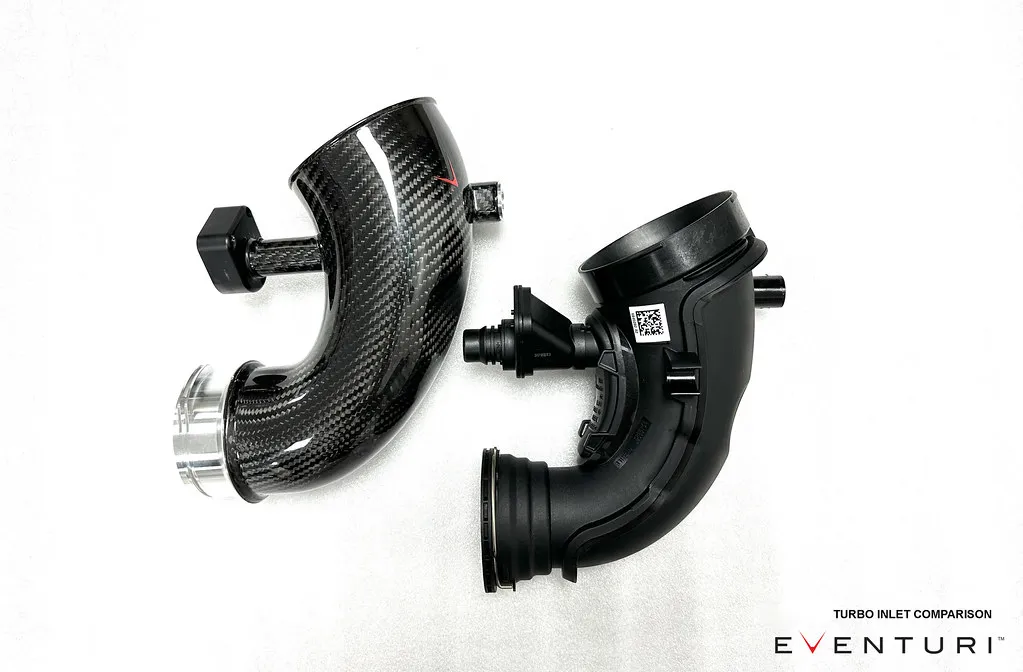

The performance gains are produced from providing the turbos with a less resistive flow path which allows them to reach peak boost sooner in the RPM range. When comparing to the stock inlets the differences are clear to see. Where the stock tubes narrow down immediately after the connection to the intakes, our tubes maintain a larger diameter and the reduction to the stock turbos is achieved with an internal radius on the machined flanges. This allows for larger volume whilst maintaining a smooth flow path. One of the drawbacks of the oversized inlets was the more aggressive reduction in size to match the stock turbos which created some flow constraints.
