CSF RACE TOP MOUNT CHARGE-AIR-COOLER IN RAW FINISH

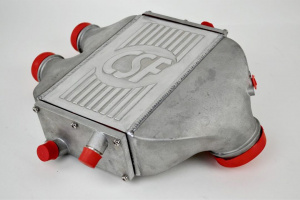

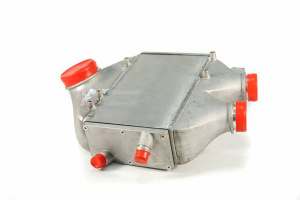

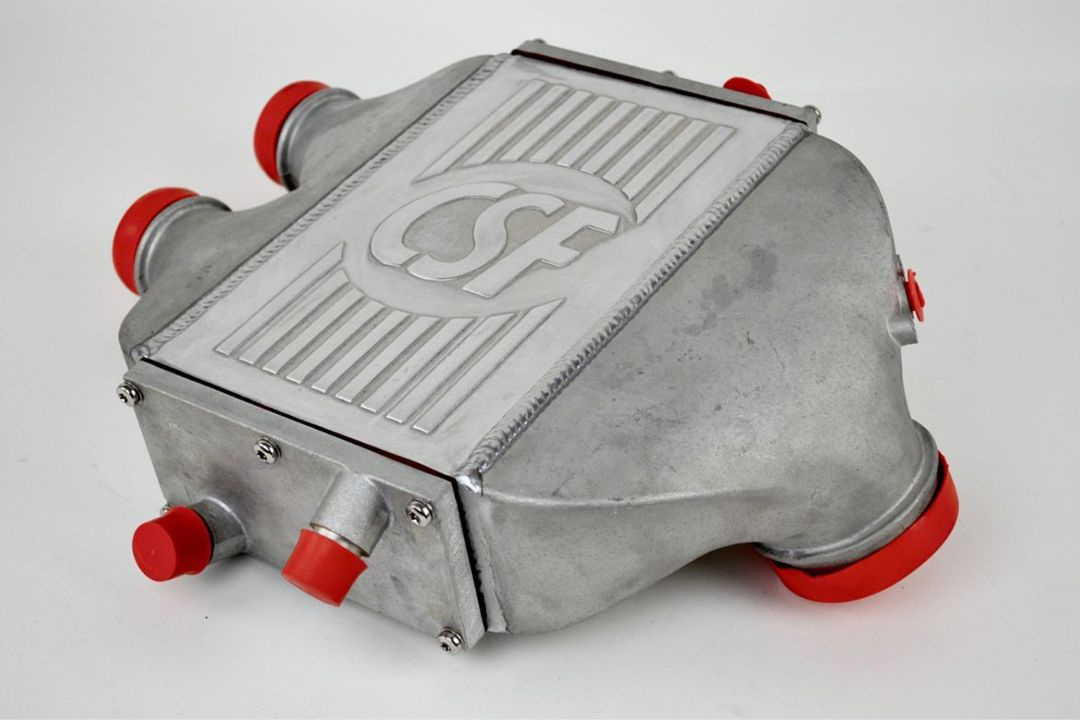

CSF Race F8X M4 - Top Mount Charge-Air-Cooler in Raw finish

World’s 1st cast end tank designed top mount charge-air-cooler for the BMW S55 engine in the BMW F8X M4

Multiple air dividers cast into both the hot/cold side end tanks for optimized air flow through the custom designed CSF liquid-to-air intercooler core (CFD analysis and testing completed to ensure optimal performance)

**60% increase in core size compared to the OEM cooler.

Left/right, cross-flow, dual-pass core configuration with 2-stage water cooling for maximum efficiency and intake temperature reduction (vs. OEM single-pass vertical-flow design)

Designed with 3D scanning / rapid prototype technology to ensure precise fitment and maximum surface area utilization.

“Drop-in fit” design for an easy & quick plug-and-play installation. Complete with OEM style “Quick-Connect” water connections and sensor ports.

Finished with a Raw Aluminium finish (CSF #8082R). Also available in a professional "Crinkle Black" powder coat finish (CSF #8082).
