CSF RACE RADIATOR AUTOMATIC TRANSMISSION

CSF Race Radiator for BMW E9X 3 Series 335i(Automatic)

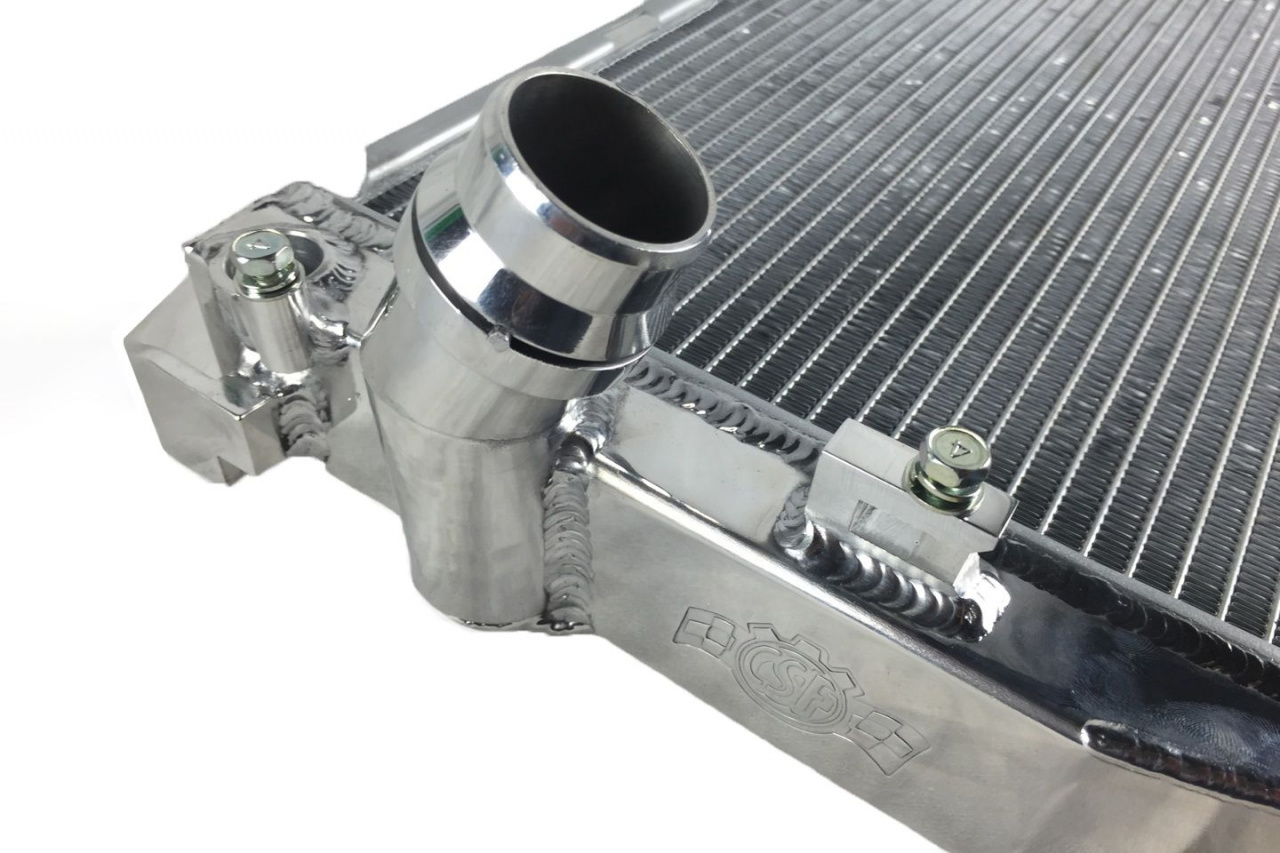

With CSF’s exclusive B-Tube technology and 6.5mm multi-louvered fin height, 1 hour hand polished mirror-finish, CNC machined mounting brackets

True “drop-in-fit” with no modifications necessary

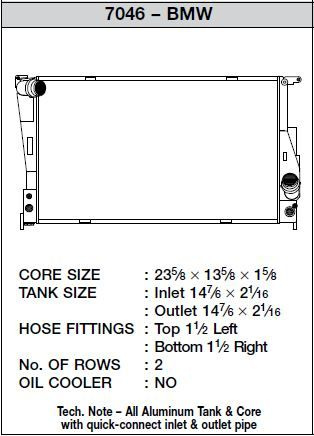

PART NUMBER: CSF-7046

Fits:

• E82 1M Coupe
• E8X 135i
• E9X 335i
• E89 Z4 sDrive30i
• E89 Z4 sDrive35i
• E89 Z4 sDrive35is

CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry leading testing methods to maximise airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology!

• “B-Tube” technology – Unlike a regular oval shape “O” type radiator tube, CSF uses a specially engineered tube in a shape of a “B”. These “B-tubes” are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminium material (better cooling efficiency) because this design is actually stronger than normal “O” shape tubes that are welded.
• The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes. You get the efficiency of 2 smaller tubes vs. 1 large tube within the same space criteria. With “B-tubes” you are able to get “dual liquid laminar flow.”
• High Efficiency Multi Louvered Fin – CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
