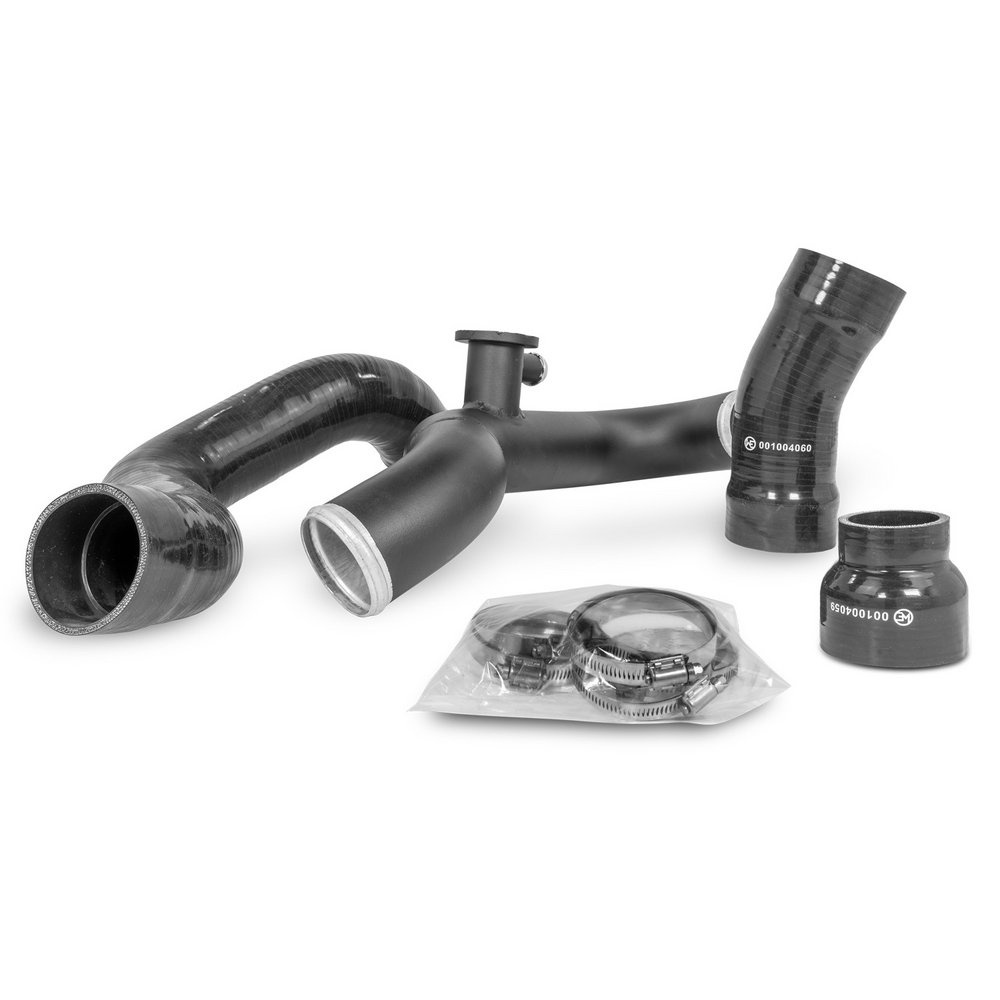

Competition Intercooler Kit EVO2 + Pipe 200001074.PIPE

Описание

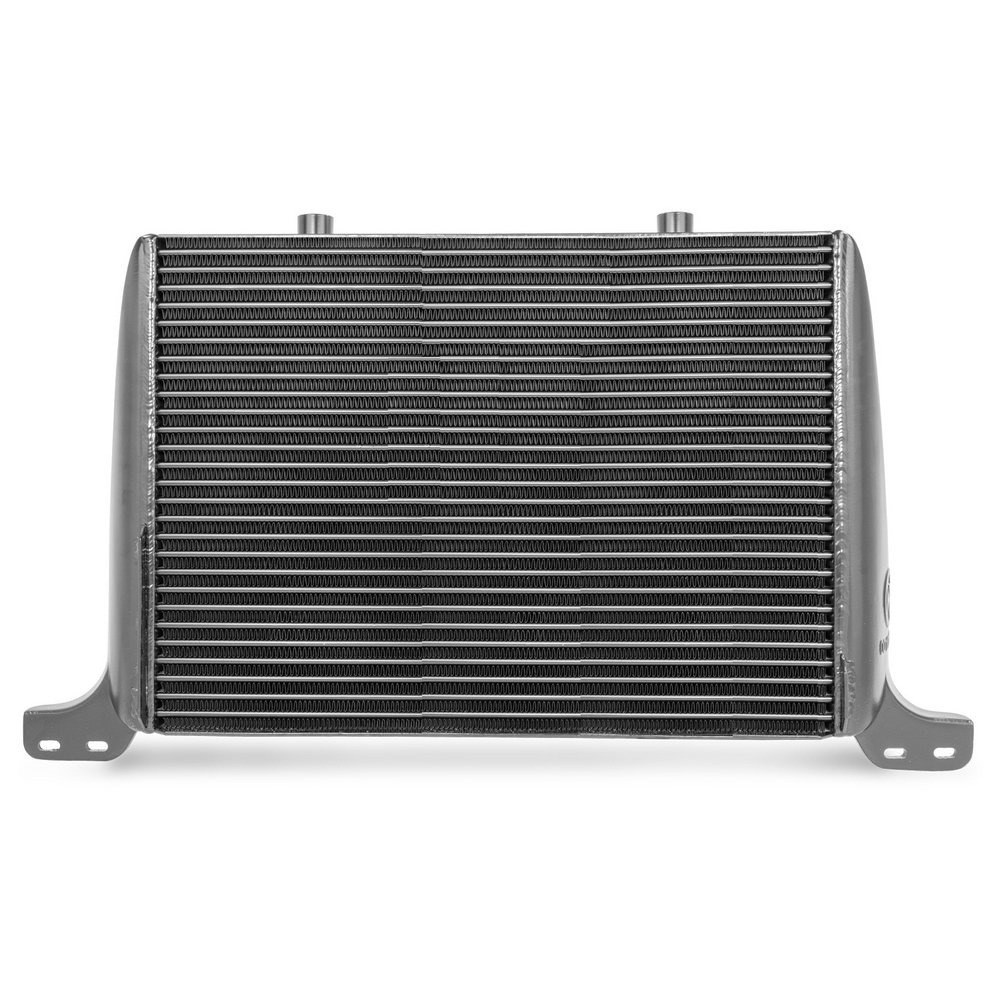

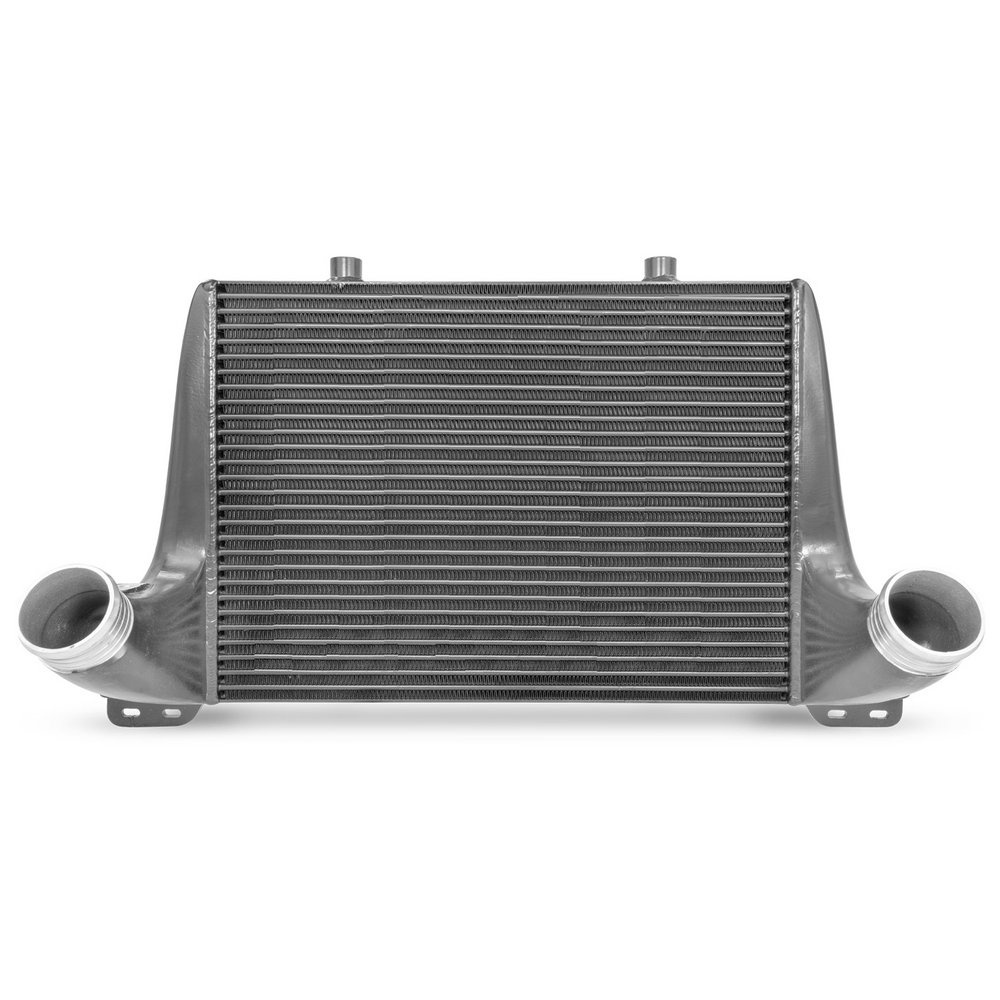

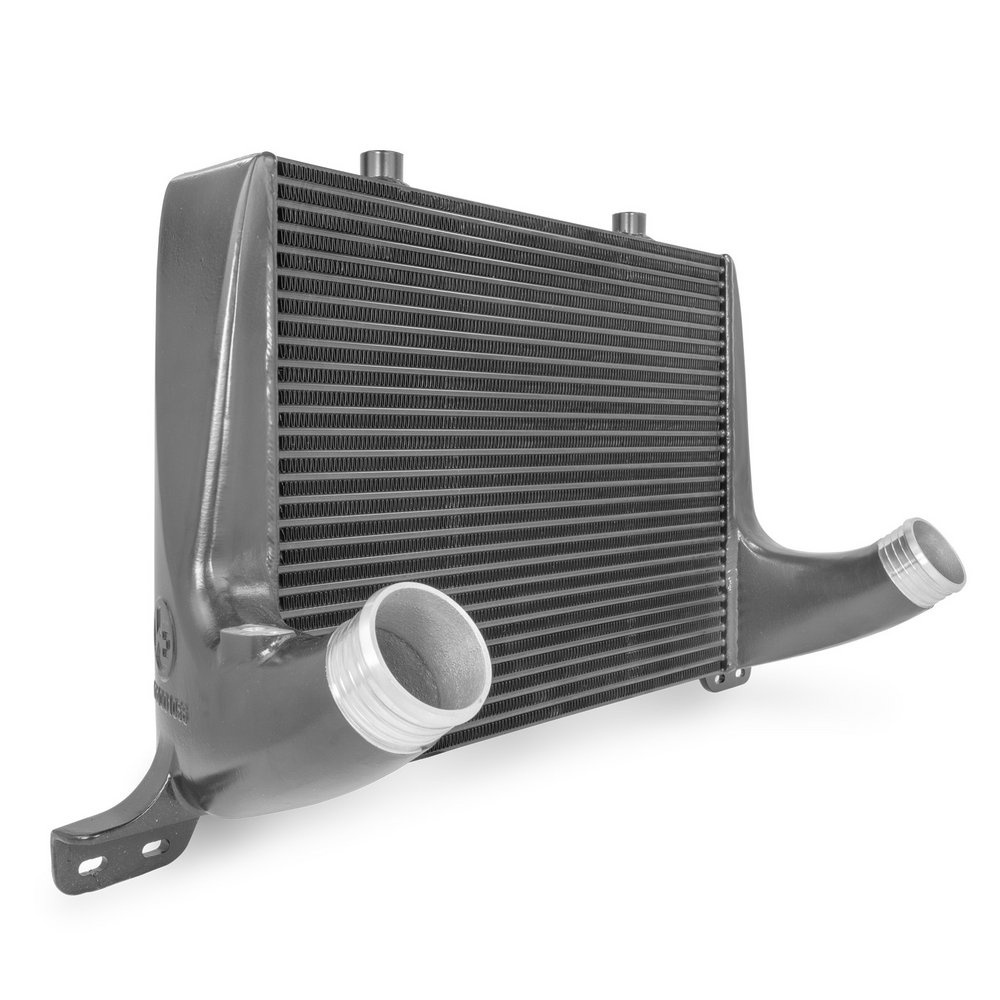

Intercooler Upgrade Kit EVO2 for Ford Mustang 2.3l EcoBoost

The Competition Intercooler EVO2 has the following core size (535mm x392mm x95mm = 19.900cm³), providing a 175% larger frontal area and 226% more volume compared to the original intercooler.
Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.
This Mustang Intercooler uses our award winning Wagner Tuning competition intercooler core which is made specifically for this application. It is one of the highest quality Tube Fin cores available on the market. Featuring turbulators, combined with freeform cast aluminum end tanks optimized in CAD. Flow analyses and simulations were created to optimise the design for best possible Internal Airflow.
This intercooler is the best choice when it comes to performance gains and low intake temperatures. Anti corrosion protective coating with perfect thermal heat dissipating character.
Optimal cooling with clearly more power. Kit is ready for installation (plug & play). To ensure optimum flow to the intercooler this kit includes an air shroud made of carbon fiber. On both sides the connection diameter is 70mm.

Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.

Dimensions stock Intercooler:
525mm x 145mm x 80mm
V=6,1Liter
A=761cm²

Dimensions WAGNERTUNING EVO2 Intercooler:
535mm x 392mm x 95mm
V=19,9Liter
A=2097cm²
weight 21Kg

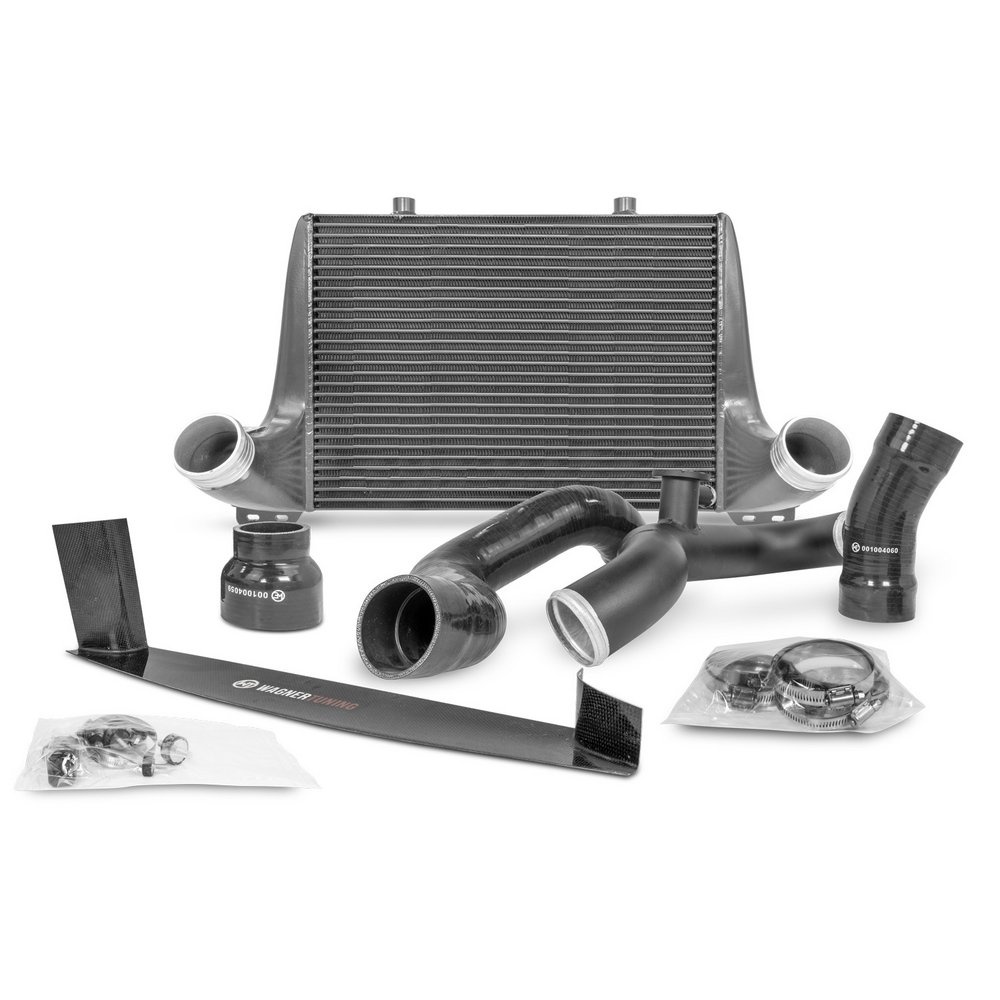

packing list:
1 intercooler painted black
1 carbon shroud
1 mounting material
1 installation instruction
