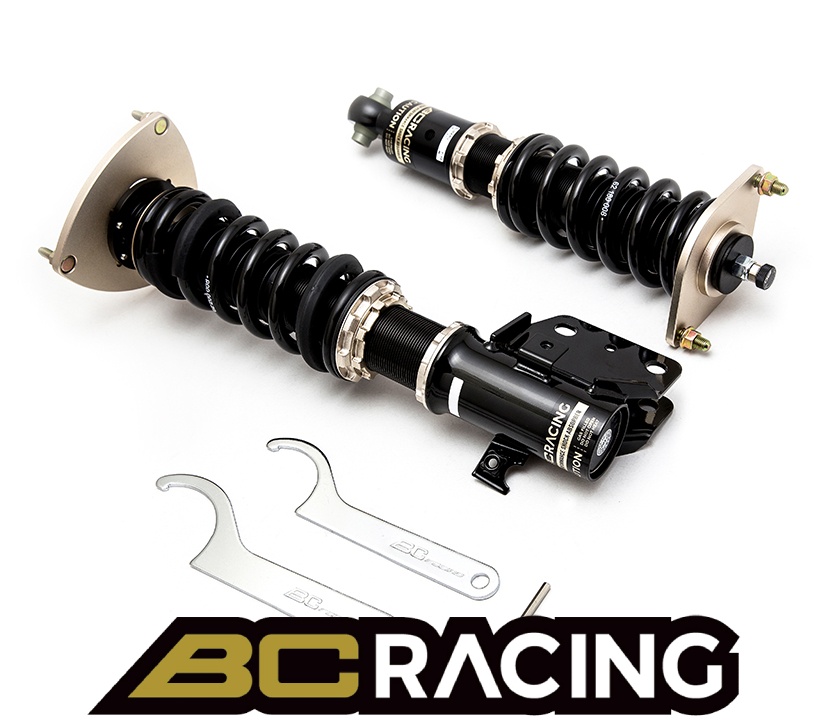

BC Racing BR RS H-24-RS

BR Series

The BC Racing BR Series offers the most affordable entry into coilover suspension without sacrificing performance, comfort, build quality, or handling. This is done by extensively testing each vehicle then refining the coilover characteristics as many times as needed to ensure the most well-balanced and affordable aftermarket suspension conceivable.

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity. As the damper unit operates the oil contained within heats up, the viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristic of the unit. BC Racing only use a very high quality oil with their coilovers but go that extra mile to maximise performance and build their BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.

Key Features

• Pillowball top mounts
• Bearing mounted upper spring platform
• Camber adjustable top mounts (depending on model)
• Ride height adjustment separate to spring preload
• 30 way adjustable damping
• Monotube damper design
• Tapered bottom mount locking collar to prevent collar working loose
• Custom spring rates available
• All spare parts available with low lead times
• Dust boot to protect damper seals
• 1 year manufacturer warranty
